Surveillance
Works with IP Cameras
-
Conference Call
Works with IP Phones
-
Wi-Fi Coverage
Works with Omada EAPs
-
Wired Connections
Works with PCs and Printers

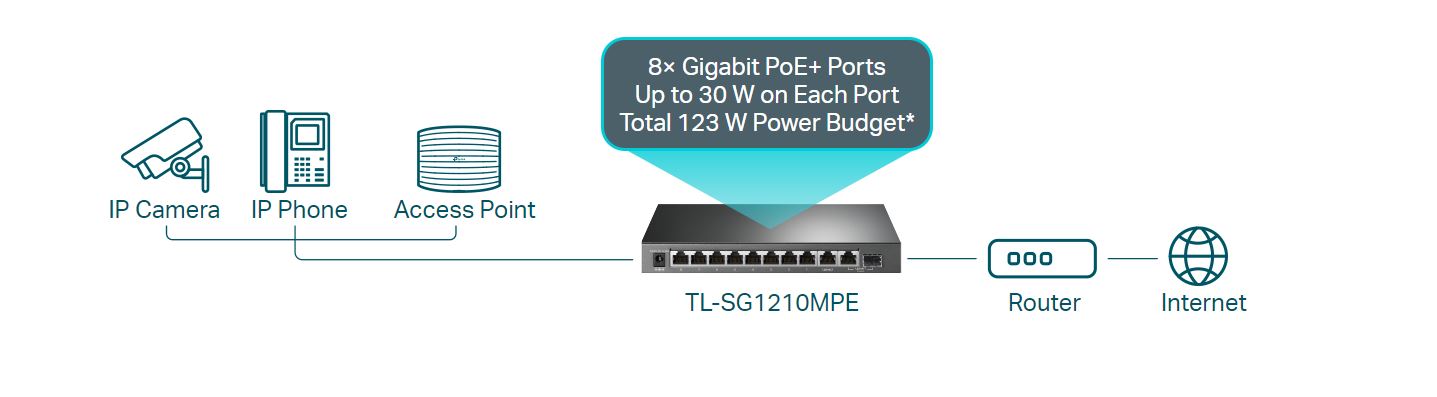

Dedicated 8 PoE+ Ports (123 W Budget) for
Numerous ApplicationsCompliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 123 W PoE power budget* for the 8× gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.

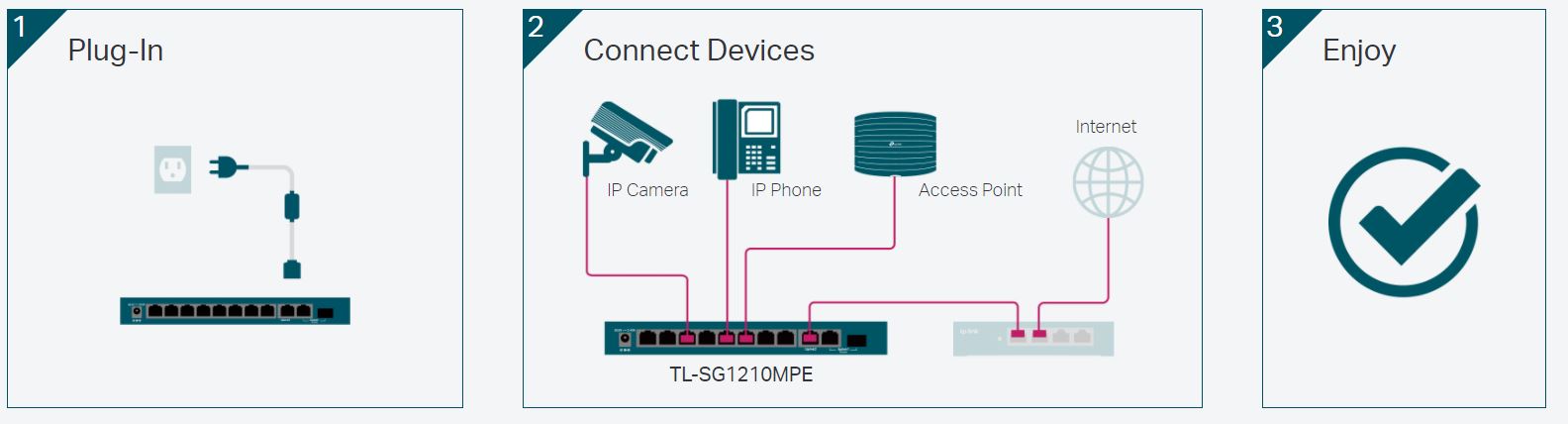

Easy to Use
Value-Added Features Bring Unexpected Experiences
Making Management Easy

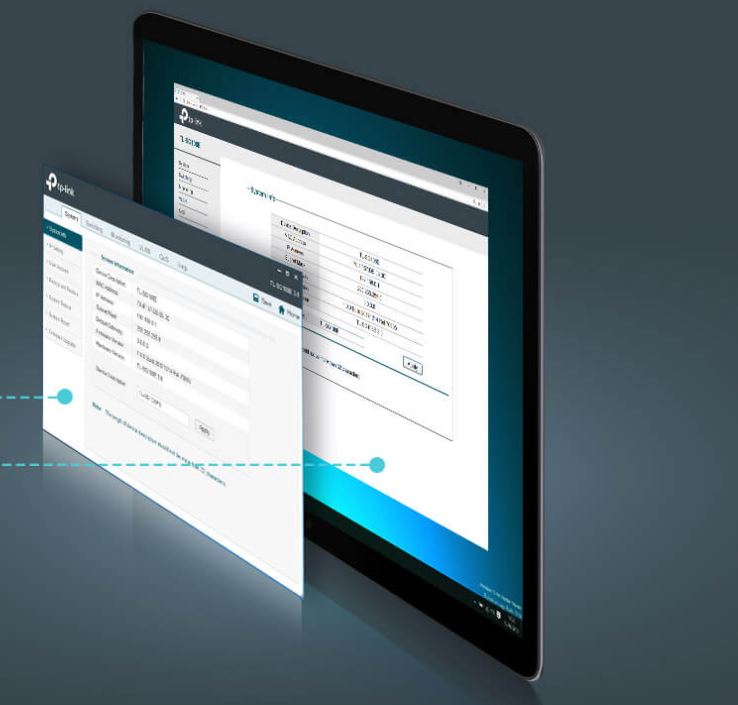

TL-SG1210MPE offers network monitoring for users to observe traffic behaviour. Through its web-based user interface and management utility, the TL-SG1210MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Multiple Features Guarantee Stable Operation
Durable Metal Casing
The interior components of TL-SG1210MPE are protected by a high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1210MPE delivers switching performance you can depend on.
-
-Compact Desktop Design
-
-Wall-Mounting
-
-Fanless Design
HARDWARE FEATURES Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3zInterface 9× 10/100/1000 Mbps RJ45 Ports
1× 1000 Mbps Combo SFP/RJ45 Port
AUTO Negotiation/AUTO MDI/MDIXNetwork Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)Fan Quantity Fanless Power Supply External Power Adapter (Output: 53.5 VDC/2.43 A) PoE Ports (RJ45) Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 8
PoE Power Budget: 123 WDimensions ( W x D x H ) 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) Max Power Consumption 7.66 W (220V / 50Hz with no PD connected)
141.54 W (220V / 50Hz with 123 W PD connected)Max Heat Dissipation 26.12 BTU/h (220V / 50Hz with no PD connected)
482.65 BTU/h (220V / 50Hz with 123 W PD connected)PERFORMANCE Switching Capacity 20 Gbps Packet Forwarding Rate 14.88 Mpps MAC Address Table 4 K Jumbo Frame 16 KB SOFTWARE FEATURES Quality of Service Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm ControlL2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop PreventionVLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLANPoE Extend Mode**
PoE Auto RecoveryManagement Web-based GUI
Easy Smart Configuration UtilityTransmission Method Store-And-Forward OTHERS Certification FCC, CE, RoHS Package Contents TL-SG1210MPE
Power Adapter
Installation Guide
Rubber FeetSystem Requirements Microsoft® Windows® for running Utility Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing -

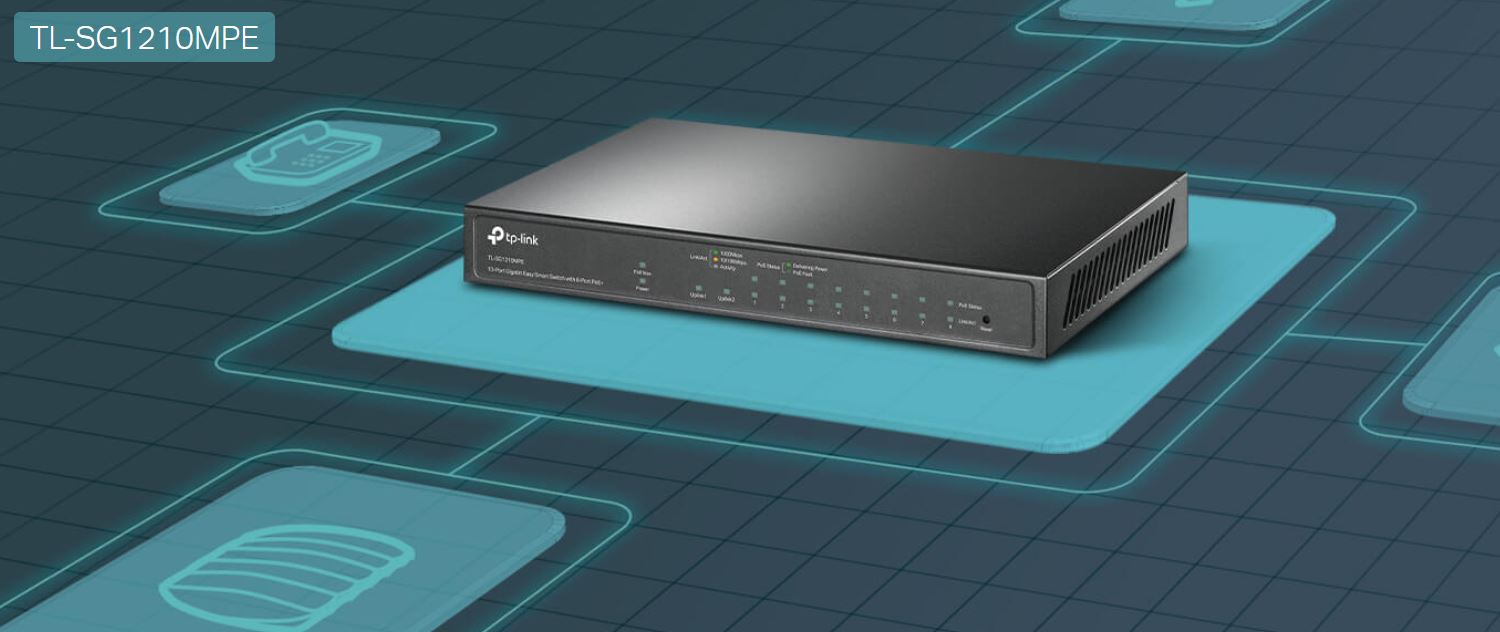

TP-Link TL-SG1210MPE Easy Smart 8 Gigabit 8 Port PoE + Switch
Model
TL-SG1210MPE
| Location | Availability |
|---|---|
Online (Delivery) | In Stock |
Notting Hill (Pickup) | In Stock |
Preston (Pickup) | Available in 24 Hours |
West Melbourne (Pickup) | Available in 24 Hours |
$151.00

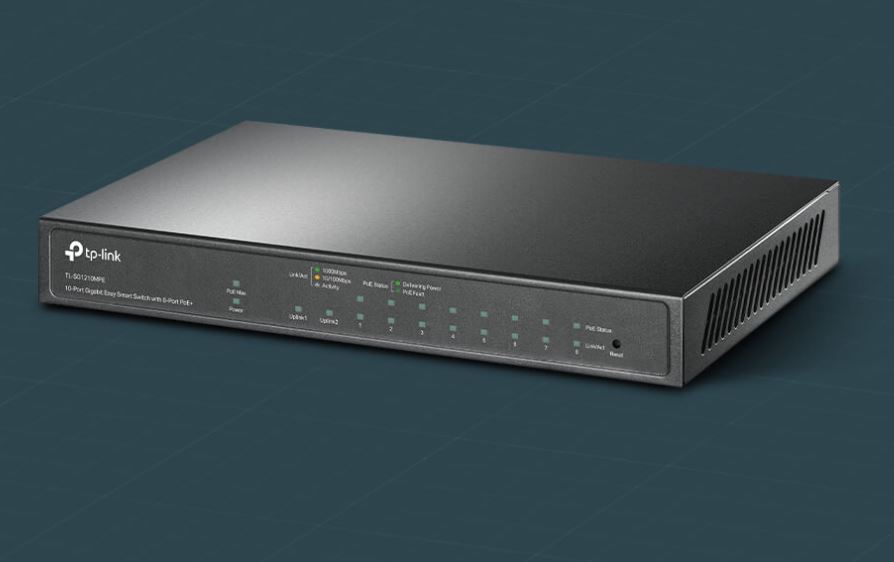

TP-Link TL-SG1210MPE Easy Smart 8 Gigabit 8 Port PoE + Switch
TL-SG1210MPE
10-Port Gigabit Easy Smart Switch
with 8-Port PoE+
- 9× gigabit RJ45 ports and 1× combo gigabit SFP/RJ45 port
- Equipped with eight 802.3af/at PoE+ ports with up to 30 W for each port, the switch can transfer data and power via one single cable
- Supports PoE power up to 123 W for all PoE ports*

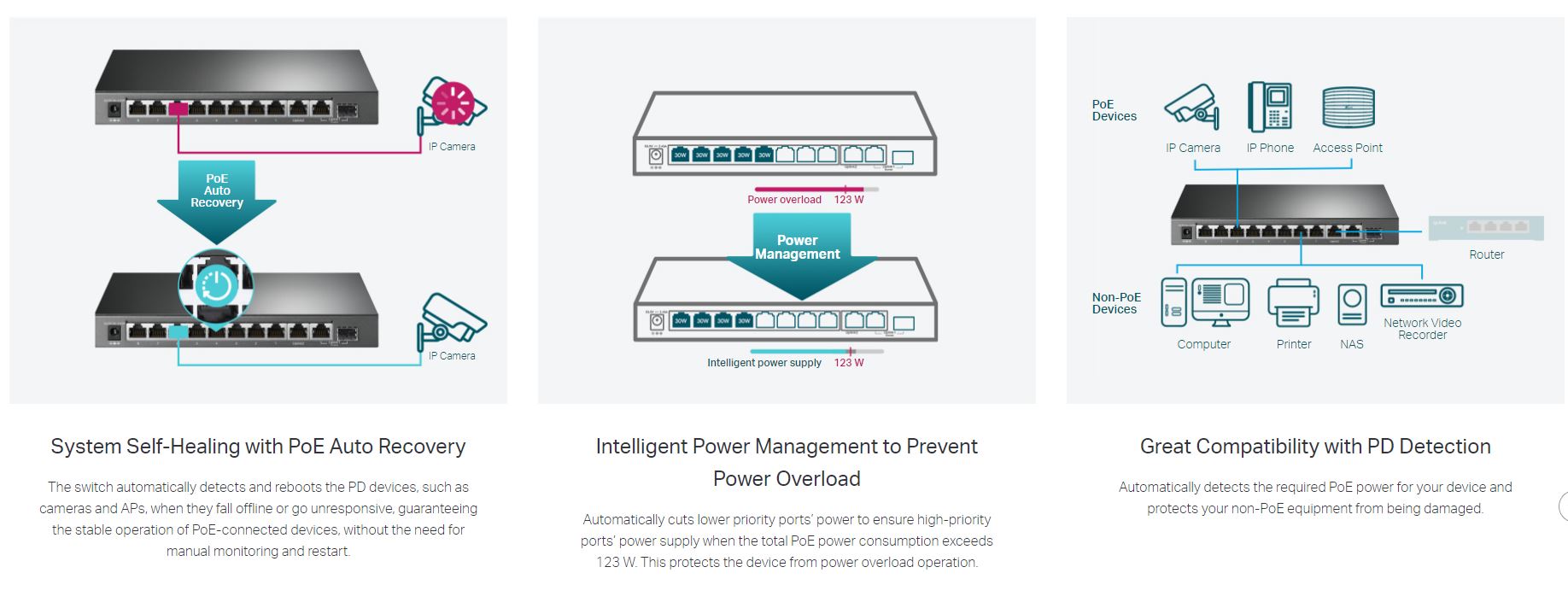

- Provides network monitoring, traffic prioritisation, VLAN features, and PoE Auto Recovery
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
- Fanless design lowers energy consumption and eliminates operating noise
Professional 10-Port Gigabit Easy Smart Switch with 8-Port PoE+
Easy to Use, Multi-Purpose PoE Switch with Powerful Performance
TL-SG1210MPE
Multiple Application Scenarios
The TL-SG1210MPE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.
| GTIN | 845973099565 |
|---|
