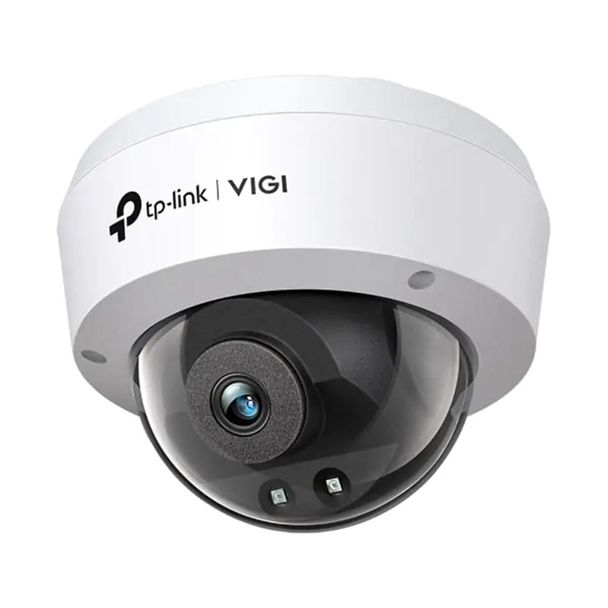

TP-Link VIGI C240I(2.8mm) 4MP IR Dome Network Camera

Image Sensor

1/3” Progressive Scan CMOS

Shutter Speed

1/3 to 1/10000 s

Slow Shutter

Yes

Minimum Illumination

Color: 0.1 Lux; 0 Lux with IR

Day/Night Mechanism

IR Cut Filter

Day/Night Switch

Unified/ Scheduled/ Auto

Lens

2.8 mm

Aperture

2.8 mm: F2.2

Lens Mount

M12

Viewing Angle

2.8mm: 88.8°/48.9°/106.5°(H/V/D)

IR Working Distance

30m

Digital Noise Reduction

3D DNR

WDR

DWDR

Weatherproof Rating

IP67

LENS

Type

Fixed Focal Lens

Focal Length

2.8 mm

Aperture

2.8 mm: F2.2

FOV

2.8 mm:

Horizontal FOV: 88.8°, Vertical FOV: 48.9°, Diagonal FOV: 106.5°

Lens Mount

M12

DORI Distance

2.8 mm:

Detect:60 m (197 ft)

Observe: 25 m (82 ft)

Recognize: 12 m (39 ft)

Identify: 6 m (20 ft)

VIDEO

Max. Resolution

2560 × 1440

Main Stream

Frame Rate：

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate   only supports up to 20fps.

Sub-Stream

Frame Rate：

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 640x480,352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate   only supports up to 20fps.

Bit Rate Control

CBR, VBR

Video Compression

Main Stream: H.265+/H.265/H.264+/H.264

Sub-Stream: H.265/H.264

H.264 Type

Main Profile/High Profile

H.264+

Main Stream Supported

H.265 Type

Main Profile

H.265+

Main Stream Supported

Video Bit Rate

Main Stream: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps

ILLUMINATOR

IR LED

Quantity: 2

Range: 30m

Wavelength: 850nm

White LED

N/A

Illuminator On/Off Control

Auto/Scheduled/Always on/Always off

ANGLE ADJUSTMENT (MANUAL)

Range

Pan: 0° to 355°

Tilt: 0° to 75°


Image Settings

Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)

Image Enhancement

BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range

DWDR

SNR

≥ 52 dB

Image Parameters Switch

Yes

Privacy Mask

Up to 4 Masks

ROI

1 Region

OSD Setting

Yes

AUDIO

Audio Communication

N/A

Audio Input

N/A

Audio Output

N/A

Audio Compression

N/A

Audio Sampling Rate

N/A

Environment Noise Filtering

N/A

Audio Bit Rate

N/A

NETWORK

Security

Password Protection, HTTPS Encryption, IP Address Filter, Digest   Authentication

Protocol

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

API

ONVIF

Simultaneous Live View

3 Main Streams & 3 Sub-Streams

Client

VIGI App, VIGI Security Manager, VIGI NVR, Web

Web Browser

Google Chrome® 57 and above

Firefox® 52 and above

Safari® 11 and above

Microsoft® Edge 91 and above

Cloud

Yes

ONVIF

Yes

INTERFACES

Network Interface

1 RJ45 10/100M Self-Adaptive Ethernet Port

Alarm

N/A

Reset Button

N/A

Power

DC Power Port

Button

-

Video Output

-

On-board Storage

N/A

Built-in Microphone

N/A

Built-in Speaker

N/A

Audio

N/A

ALARM AND EVENT MANAGEMENT

Smart Event

Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering   Detection, Region Exiting Detection, Object Abandoned Detection, Object   Removal Detection

Basic Event

Motion Detection, Video Tampering Detection, Exception ( Illegal Login)

Alarm Linkage

Message Push

Linkage Method

N/A

Output Notification

Message Push

GENERAL

Package Contents

VIGI Network Camera

Quick Start Guide

Waterproof Cable Attachments

Mounting Accessories

Operating Temperature

-30–60 °C

Storage Temperature

-40–60 °C

Storage Humidity

95% or Less (Non-Condensing)

Operating Humidity

95% or Less (Non-Condensing)

Dimensions( H X W X D )

115 × 115 × 86 mm

Material

Plastic

General Features

Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening

Net Weight

0.27 Kg

Gross Weight

0.45 Kg

Power Consumption

12V DC: Max 5W

PoE: Class 0

Power Supply

12V DC ± 5%, 5.5mm Coaxial Power Plug

PoE (802.3af/at, class 0)

Vandal Resistant

IK10

Protection

IP67, IK10

Product Dimensions (L x W x H)

115× 86× 115 mm

Certifications

CE/BSMI/VCCI/ONVIF

VIDEO/IMAGE

Video Compression

Main Stream: H.265+/H.265/H.264+/H.264

Sub-Stream: H.265/H.264

Frame Rate & Resolutions

Main Stream:

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720

Sub-Stream:

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 640x480,352x288, 320x240

Max. Resolution

4MP (2560 × 1440)

Video Streaming

Main Stream

Sub-Stream

Image Settings

Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)

Image Enhancement

BLC/3D DNR/HLC/SmartIR

Video Bit Rate

64 Kbps to 4 Mbps

Day/Night Switch

Day/Night/Auto/Schedule

SMART FEATURE-SET

Smart Event

Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object   Removal Detection

Basic Event

Motion Detection, Camera Tampering Detection, Exception (Illegal Login)

Linkage Method

Trigger Notification: ONVIF, HTTPS

Region of Interest

1 Region
