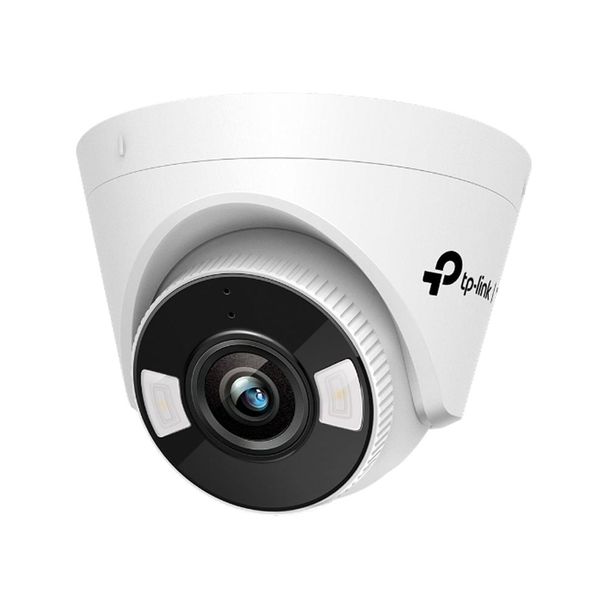

TP-Link VIGI C450(2.8mm) 5MP Full-Colour Turret Network Camera
Model
VIGI C450(2.8mm)
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 3 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 7 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 7 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 7 Working Days) |
$79.00
TP-Link VIGI C450(2.8mm) 5MP Full-Colour Turret Network Camera
Specifications
| CAMERA | |
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/white light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Day/Night/Auto/Schedule-Switch |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 2.8 |
| Aperture | 2.8 mm: F1.6 |
| FOV | 2.8mm: |
| Horizontal FOV: 109°, Vertical FOV: 57°, Diagonal FOV: 128° | |
| Lens Mount | M12*P 0.5 |
| DORI Distance | 2.8 mm |
| Detect: 64 m (209 ft) | |
| Observe: 27 m (87 ft) | |
| Recognize: 13 m (42 ft) | |
| Identify: 6 m (21 ft) | |
| VIDEO | |
| Max. Resolution | 2880 X 1620 |
| Main Stream | Frame Rate： |
| 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | |
| 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| Resolution: | |
| 2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080,1280x720 | |
| Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. | |
| Sub-Stream | Frame Rate： |
| 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | |
| 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| Resolution: | |
| 704x576,640x480, 352x288, 320x240 | |
| Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. | |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream: H.265/H.264 | |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps |
| Sub-Stream: 64 Kbps to 512 Kbps | |
| ILLUMINATOR | |
| IR LED | Quantity: 2 |
| Range: 30m | |
| Wavelength: 850nm | |
| White LED | Quantity: 2 |
| Range: 30m | |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| ANGLE ADJUSTMENT (MANUAL) | |
| Range | Pan: 0° to 360°, Tilt: 0° to 85° |
| IMAGE | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | |
| Audio Communication | Yes |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| NETWORK | |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Network Storage | NAS (NFS, SMB/ CIFS) |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, VIGI NVR, Web |
| Web Browser | Google Chrome® 57 and above |
| Firefox® 52 and above | |
| Safari® 11 and above | |
| Microsoft® Edge 91 and above | |
| Cloud | Yes |
| ONVIF | Yes |
| INTERFACES | |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
| ALARM AND EVENT MANAGEMENT | |
| Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception ( Illegal Login), Scene Change Detection |
| Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
| DEEP LEARNING FUNCTION | |
| Multi-Target-Type Detection | Supports Simultaneous Detection and Capture of Human Body and Vehicle |
| Face Capture | N/A |
| Face Comparison | N/A |
| GENERAL | |
| Package Contents | VIGI Network Camera |
| Quick Start Guide | |
| Mounting Accessories | |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Material | Plastic |
| Net Weight | 0.24 Kg |
| Gross Weight | 0.4 Kg |
| Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug |
| PoE (802.3at, class 0) | |
| Power Consumption | Maximum: 9 W |
| Typical (Day Mode): 1.76 W | |
| Typical (Night Mode with IR LED): 3.5 W | |
| Typical (Night Mode with White LED): 3.8 W | |
| Protection | N/A |
| Product Dimensions (L x W x H) | Φ123x84 mm |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
| †Picture for reference only. | |
| §These features are in development and will update with future software iterations. | |
| *SD card is not included in the package. | |
| **Calculations based on laboratory testing using a 3MP VIGI camera, and an actual performance may vary according to the amount of activity recorded, resolution and other variables. In addition, tile encoding is enabled automatically in H.265 mode when the horizontal resolution is higher than 2688. In this case, if the third-party NVR doesn't support tile encoding, it can't enable H.265 mode. For best performance, we recommend using VIGI NVR with VIGI cameras. |
|
| GTIN | 4895252503036 |
|---|
