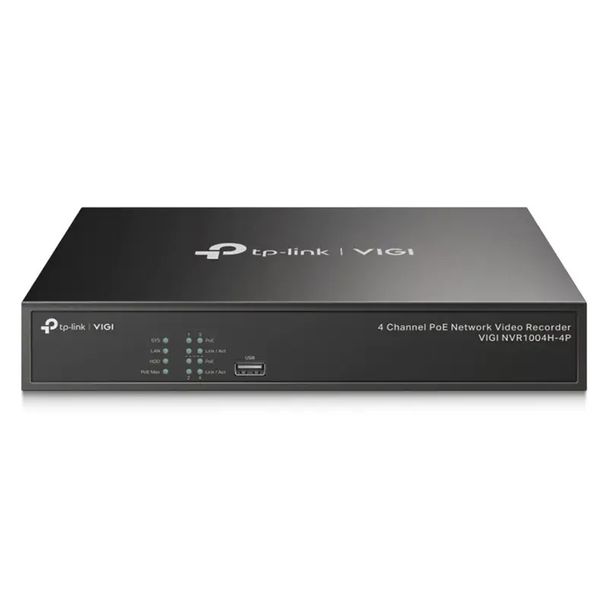

TP-Link VIGI NVR1004H-4P 4 Channel PoE+ Network Video Recorder
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 3 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 3 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 3 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 3 Working Days) |
SPECIFICATIONS
|
DECODING |
|
|
Decoding Format |
H.265+/H.265/ H.264+/H.264 |
|
Live View/Playback Resolution |
8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Synchronous Playback |
4 Channel |
|
Capability |
2-ch @ 8MP, 4-ch @ 4MP |
|
NETWORK |
|
|
Protocol |
TCP/IP, DHCP, DNS, NTP, UPnP |
|
Incoming Bandwidth |
80 Mbps |
|
Outgoing Bandwidth |
60 Mbps |
|
INTERFACES |
|
|
Network Interface |
1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
|
USB Interface |
2× USB 2.0 |
|
HARD DISK |
|
|
SATA |
1 SATA Interface |
|
Capacity |
Up to 10 TB |
|
GENERAL |
|
|
Package Contents |
VIGI Network Video Recorder Power Adapter HDD Screws Quick Installation Guide |
|
Operating Temperature |
-10–55 °C |
|
Dimensions( W X D X H ) |
246.2 × 148.2 × 45 mm |
|
PoE |
Standard: 802.3af/at PoE Ports: Ports 1-4 PoE Budget: 53 W |
|
External Power Supply |
53.5V DC/1.31A |
|
Power Consumption |
4.25 W (without disk) |
|
VIDEO/IMAGE |
|
|
Video Input |
4-Channel IP Video Input, up to 8MP Resolution |
|
Recording Resolution |
8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
HDMI Output Resolution |
1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz |
|
VGA Output Resolution |
1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz |
|
OTHERS |
|
|
Notes |
Calculations based on laboratory testing using VIGI cameras. PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors. §Fewer or no channels may be available for playback if the total resolution is 16MP. △Some features may operate sub-optimally due to compatibility issues. For best performance, we recommend using VIGI NVR with VIGI cameras **Calculations based on laboratory testing using a 3MP VIGI camera. Actual performance may vary according to the amount of activity recorded, resolution, and other variables. |
| GTIN | 4897098688748 |
|---|
