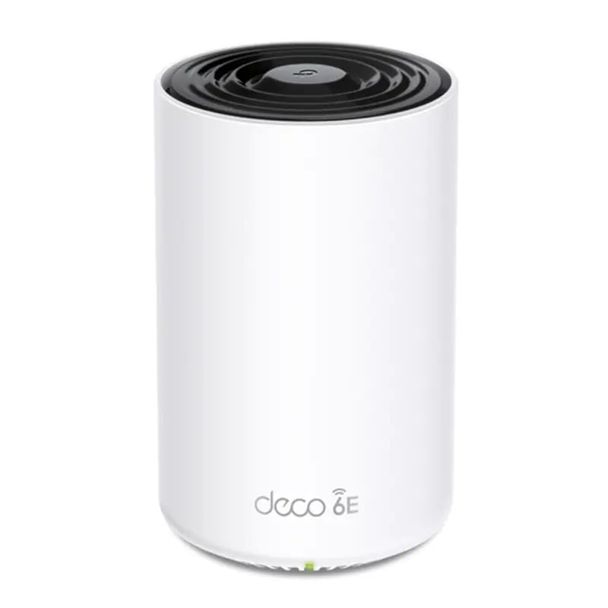

TP-Link Deco XE75 Pro(1-pack) AXE5400 Tri-band Mesh Wi-Fi 6E System

WIRELESS

Standards

Wi-Fi 6E

IEEE 802.11ax 6 GHz

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds

AXE5400

6 GHz: 2402 Mbps (802.11ax, HE160)

5 GHz: 2402 Mbps (802.11ax, HE160)

2.4 GHz: 574 Mbps (802.11ax)

WiFi Range

1-3 Bedroom Houses (1-pack)

TP-Link Mesh Technology

Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

AI-Driven Mesh

Intelligently learns the network environment to provide ideal Wi-Fi unique to your home

4× High-Gain Antennas (Internal)

Multiple antennas form a signal-boosting array to cover more directions and large areas

Tri-Band

A newly-opened 6 GHz band brings more bandwidth and faster speeds

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity

Very High

Tri-Band

Distribute devices to different bands for optimal performance

2×2 MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

OFDMA

Simultaneously communicates with multiple WiFi 6 clients

6 Streams

More than enough bandwidth for connected devices

Working   Modes

Router Mode

Access Point Mode

HARDWARE

Processor

1.7 GHz Quad-Core CPU

Ethernet Ports

1× 2.5 Gbps Port + 2× Gigabit Ports

*Per Deco Unit

Supports WAN/LAN auto-sensing

Buttons

Reset Button

SECURITY

WiFi Encryption

WPA-Personal

WPA2-Personal

WPA3-Personal

Network Security

SPI Firewall

Access Control

HomeShield Security

Real-Time IoT Protection

Malicious Site Blocker

Intrusion Prevention System

DDoS Attack Prevention

Home Network Scanner

Guest Network

1× 6 GHz Guest Network

1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

SOFTWARE

Protocols

IPv4

IPv6

Service Kits

HomeShield

Parental Controls

HomeShield Parental Controls

Custom Profiles

Professional Content Filter Library

Family Time

Bedtime

Off Time

Time Rewards

Family Online Time Ranking

Pause the Internet

Weekly and Monthly Reports

WAN Types

Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service

HomeShield QoS

QoS by Device

Cloud Service

OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding

Port Forwarding

UPnP

IPTV

IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP

Address Reservation

DHCP Client List

Server

DDNS

TP-Link

Management

Deco App

PHYSICAL

Dimensions (W×D×H)

4.1 × 4.1 × 6.7 in

(105 × 105 × 169 mm)

Package Contents

Deco XE75 Pro (1-pack)

1 Deco XE75 Pro units

1 RJ45 Ethernet cable

1 Power adapters

1 Quick Installation Guide

OTHERS

Certifications

CE, FCC, RoHS

Environment

Operating Temperature: 0°C~40°C (32 °F~104 °F)

Storage Temperature: -40°C~60°C (-40 °F~140 °F)

Operating Humidity: 10%~90% RH

Storage Humidity: 5%~90% RH

TEST DATA

WiFi Transmission Power

CE:

<20 dBm (2.4 GHz)

<23 dBm (5 GHz)

<23 dBm (6 GHz)

FCC:

<30 dBm (2.4 GHz)

<30 dBm(5 GHz)

<30 dBm(6 GHz)
