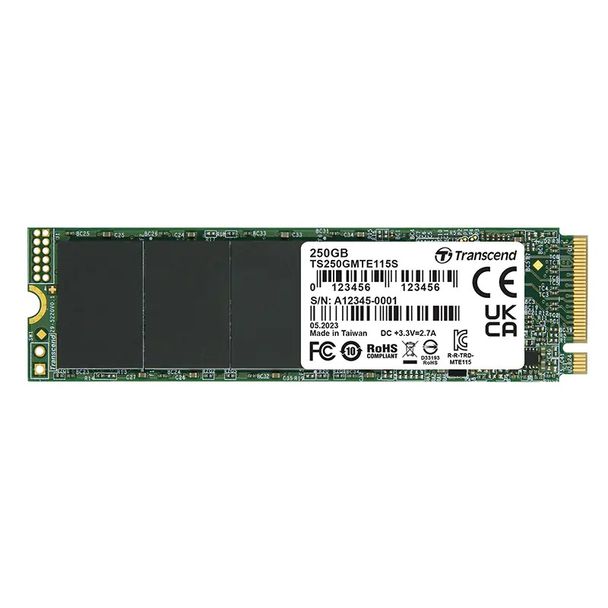

Transcend TS250GMTE115S 250GB M.2 2280 PCIe Gen3 NVMe SSD

APPEARANCE

Type

M.2 2280

Dimensions

Single-sided: 80 mm x 22 mm x 2.23 mm (3.15" x 0.87" x 0.09")

Double-sided: 80 mm x 22 mm x 3.58 mm (3.15" x 0.87" x 0.14")

Weight

8 g (0.28 oz)

INTERFACE

Bus Interface

NVMe PCIe Gen3 x4

STORAGE

Flash Type

3D NAND flash

Capacity

250GB

PERFORMANCE

Sequential Read/Write (CrystalDiskMark)

Up to 3,000/1,300 MB/s

4K Random Read/Write (IOmeter)

Up to 250,000/170,000 IOPS

Terabytes Written (TBW)

100 TBW

Mean Time Between Failures (MTBF)

2,000,000 hour(s)

Drive Writes Per Day (DWPD)

0.2 (5 yrs)

Note

• Speed may vary due to host hardware, software, usage, and storage capacity.

• The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.

• Terabytes Written (TBW) expresses the endurance under the highest capacity.

• Some motherboards only provide PCIe x2 connections for the M.2 slot, creating a bottleneck on even the fastest drives.

SYSTEM REQUIREMENT

Operating System

Microsoft Windows 7 or later Linux Kernel 2.6.31 or later

Note

• Please make sure that your computer has a M.2 slot.

• Systems for use with the PCIe M.2 SSD must have an M.2 connector with only an M key. B-key connectors are not compatible. Improper insertion may lead to damage. Please click here for more information.

TECHNOLOGY

S.M.A.R.T.

✓

Advanced Garbage Collection

✓

RAID Engine

-

LDPC Coding

✓

DRAM Cache

-
