Transtector 1101-1030 Thunderbolt GbE POE/Data Outdoor GbE POE Surge Protector

Transtector 1101-1030 Thunderbolt GbE POE/Data Outdoor GbE POE Surge Protector

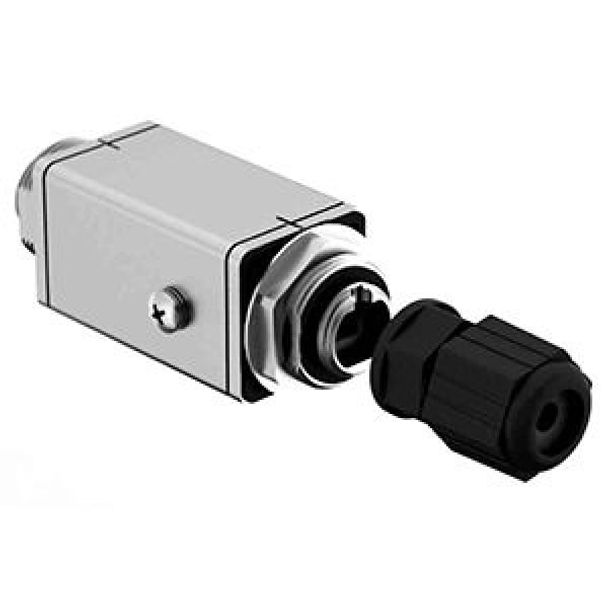

Transtector Thunderbolt 1101-1030 Outdoor 48V RJ45 POE Surge Protector Outdoor, Cat5e, RJ-45, bulkhead mount, IP 67, surge protector for signal throughput for 1000 Mb/s PoE applications.

Specifications

Mount Type Bulkhead Receptacle RJ-45

Standards IEC 6100-4-5, Telecordia 1089, IP67

Maximum Continuous Operating Voltage 90 Vpk pins (4, 5, 7, 8) , 11 Vpk pins (1, 2, 3, 6) Line Voltage 48 Vdc

Connector RJ-45 x 2

Data Rate 1000 Mb/s Gigabit

Other Features Unit comes with one weatherised strain relief for bulkhead mounting. Additional weatherised strain reliefs are available in packages of 5 1000-1334

Weight (Kilograms) 0.1 kg

Dimensions (cm) 3.6 x 3.6 x 10.0
