Ubiquiti ACB-AC airCube Wireless Dual-Band Wi-Fi Access Point
| Location | Availability |
|---|---|
Online (Delivery) | In Stock |
Notting Hill (Pickup) | In Stock |
Preston (Pickup) | Available in 24 Hours |
West Melbourne (Pickup) | In Stock |

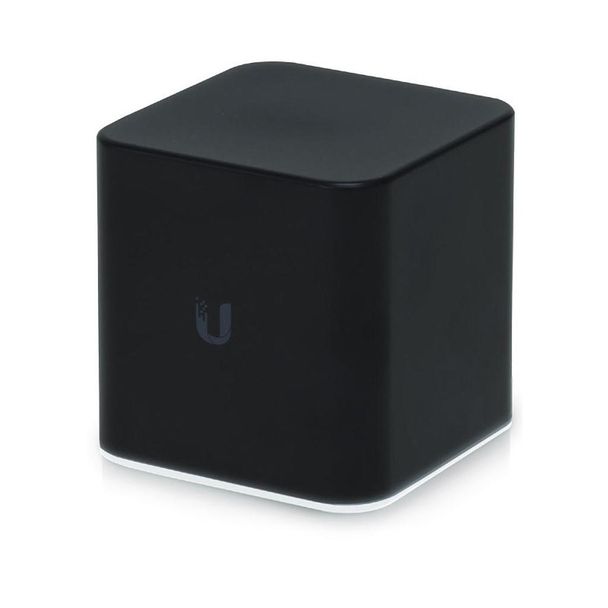

Sleek Design
The airCube's attractive design means it can be positioned anywhere in the room, improving Wi-Fi performance. The black cube design allows the airCube to become inconspicuous in a room, making unattractive WiFi access points a thing of the past.
UNMS Support
Ubiquiti Network Management Software simplifies remote network management. The UNMS app can be used to manage devices through a tablet or smartphone. You are also able to use a Web UI which allows for basic configuration of a standalone utility.
Super Antenna
Innovative Super Antenna provides wide-area coverage beyond regular Wi-Fi access points.
24V PoE Passthrough
The airCube AC can be powered by either a 24V, 20W AC power adapter (included), or an external 24V, 24W PoE adapter (not included). It both cases, the airCube AC can provide power to a remote 24V airMAX device. The airCube AC
U Mobile Support
Use the intuitive UMobile app for iOS and Android to install and configure airCube.
Features
- (4) Gigabit Ethernet Ports
- 24V PoE Passthrough for airMAX CPE
- Dual-Band, 802.11ac, 2x2 MIMO Technology
- Up to 300Mbps in the 2.4GHz Radio Band
- Up to 866.7Mbps in the 5GHz Radio Band
- Powered by 24V Passive PoE, or Included AU Power Adapter
Specifications
| Dimensions | 87.80 x 89.50 x 89.25 mm |
|---|---|
| Weight | 280g |
| Power Supply | 24VDC |
| Power Method | 24VDC, 0.83A or PoE 24V In on LAN Port 1 |
| Supported Power Voltage | 22-26V |
| Max. Power Consumption | 8.5W |
| PoE Out | Controllable 24V PoE Out (+4, 5; -7, 8) on WAN Port |
| Management Interface | Wi-Fi / Ethernet |
| Networking Interface | (4) Gigabit Ethernet Ports |
| LED | Status |
| Max. TX Power | 22dBm |
| Antenna Gain | 2.4GHz: 4dBi 5GHz: 5dBi |
| Max. Speeds | 2.4GHz: 300Mbps 5GHz: 866.7 Mbps |
| Enclosure | Black Plastic |
| ESD/EMP Protection | ±24 kV Contact / Air |
| Operating Temperature | -10 to 50° C |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC,ACMA |
| GTIN | 817882023535 |
|---|
