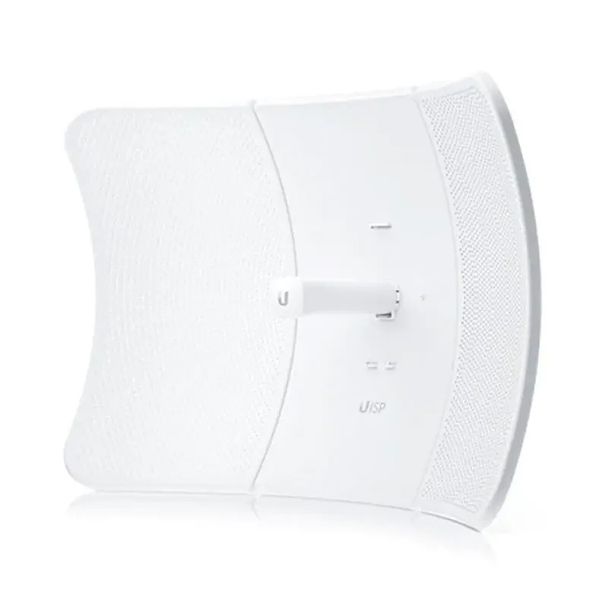

Ubiquiti LBE-5AC-XR UISP airMAX LiteBeam AC 5 GHz XR Extra Range Access Point

Dimensions

747 x 525 x 347 mm (29.41 x 20.67 x 13.66")

Weight

3.2 kg (7.06 lb)

Enclosure materials

Aluminum alloy, UV stabilized polycarbonate

Mount material

UV stabilized polycarbonate

Mounting

Integrated pole mount (included)

Pole compatibility: Ø35 to 60 mm (Ø1.38 to 2.36")

Wind loading

1100 N at 200 km/h (247.29 lbf at 125 mph)

Weatherproofing

IPX6

HARDWARE

Networking interface

(1) GbE RJ45 port

Power method

Passive PoE 2-pair (4, 5+; 7, 8-)

Power supply

24V DC, 0.5A Gigabit PoE adapter (included)

Supported voltage range

22—26V DC

Max. power consumption

7W

RF connections

Internal

LEDs

Power/ethernet

Button

Factory reset

Operating temperature

-40 to 70° C (-40 to 158° F)

Operating humidity

5 to 95% non-condensing

Certifications

FCC, IC, CE

SYSTEM

Maximum throughput

450+ Mbps

Encryption

WPA2-PSK (AES)

SOFTWARE

Modes

PtMP, PtP

Services

SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog

Utilities

airView®, speed test, alignment, discovery, ping, traceroute, constellation

Management interface

Dedicated management radio for quick device setup via the UISP™ Mobile app

WEB UI

Minimum software requirements

Modern Web browser or Android/iOS smartphone

RF

Operating frequency*

5.15 to 5.85 GHz

* Depends on regulatory region.

Max. conducted TX power

25 dBm

Management radio

2400 - 2483.5 MHz

Channel bandwidth

10/20/30/40/50/60/80 MHz

Antenna Gain

29 dBi

Isolation

20 dB

Beamwidth

HPOL: 3 dB: 5.5°, 6 dB: 7.5°

VPOL: 3 dB: 5.5°, 6 dB: 7.5°

Elevation: 3 dB: 5.5°, 6 dB: 7.5°

Electrical downtilt

0°
