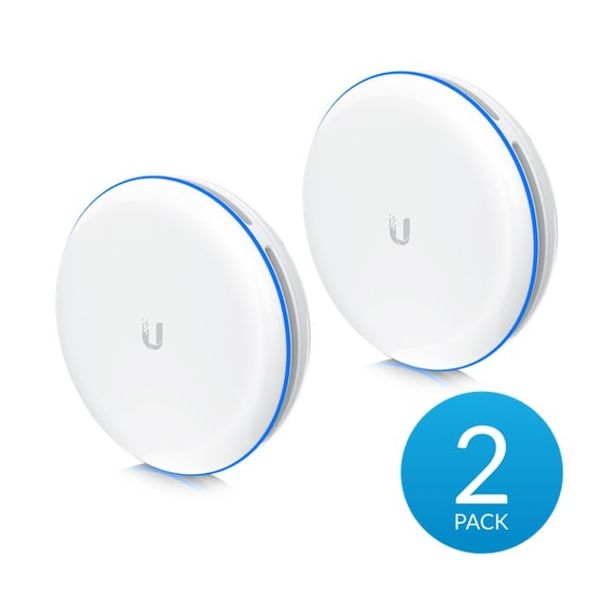

Ubiquiti UBB-XG UniFi Building-to-Building Bridge
Model
UBB-XG
| Location | Availability |
|---|---|
Online (Delivery) | ETA (04/08/2026) |
Notting Hill (Pickup) | ETA (04/08/2026) |
Preston (Pickup) | ETA (04/08/2026) |
West Melbourne (Pickup) | ETA (04/08/2026) |
$2,359.00
Ubiquiti UBB-XG UniFi Building-to-Building Bridge
60 GHz wireless bridge with a 10 Gbps SFP+ interface.
- 5 GHz backup radio
- Operational range of up to 500 meters
- 6 Gbps throughput rate
- Additional GbE RJ45 port with PoE++
- Integrated outer diameter alignment LED for easy setup
Specifications
| Mechanical | |
|---|---|
| Dimensions | Ø191.8 x 59 mm (Ø7.6 x 2.3") |
| Weight | Without mount: 1.7 kg (3.8 lb) With mount: 2.9 kg (6.3 lb) |
| Enclosure materials | Aluminum alloy, UV-resistant polycarbonate |
| Mount material | Stainless steel |
| Mounting | 60G precision alignment pole mount (Included) Pole compatibility: Ø25.4-63.5 mm (Ø1-2.5") |
| Weatherproofing | IPX6 |
| Hardware | |
| Networking interface | (1) GbE RJ45 port (1) 1/10G SFP+ port |
| Management interface | Ethernet Bluetooth |
| Power method | PoE++ Passive PoE [4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-)] |
| Power supply | UniFi PoE switch 48V, 0.65A Gigabit PoE adapter (included) |
| Supported voltage range | 48V DC ± 10% |
| Max. power consumption | 31.2W |
| Throughput rate 5 GHz 60 GHz |
866.6 Mbps 6 Gbps |
| Maximum range | 500+ m (1,640+ ft) |
| LEDs | R/G/B |
| Button | Factory-reset |
| Operating temperature | -40 to 55° C (-40 to 131° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE, terragraph |
| Software | |
| WiFi standards | 802.11ad/ay 802.11ac (WiFi 5) |
| Wireless security | WPA2 AES (Always On) |
| Operating modes | PtP |
| VLAN | Management VLAN only |
| RF | |
| Operating frequency* | 57 to 66 GHz *Dependent on regional regulations. |
| Channel bandwidth | 2,160/4,320 MHz (Channel Bonding Enabled) |
| Operating channels* | 58,320/59,400/60,480/61,560/62,640/63,720/64,800 MHz *Dependent on regional regulations. |
| Backup RF | |
| Operating frequency* US/CA Worldwide |
U-NII-1: 5,150 - 5,250 MHz U-NII-2A: 5,250 - 5,350 MHz U-NII-2C: 5,470 - 5,725 MHz U-NII-3: 5,725 - 5,850 MHz 5,150 - 5,725 MHz *Dependent on regional regulations. |
| Channel bandwidth | 20/40/80 MHz |
| GTIN | 810010076045 |
|---|
