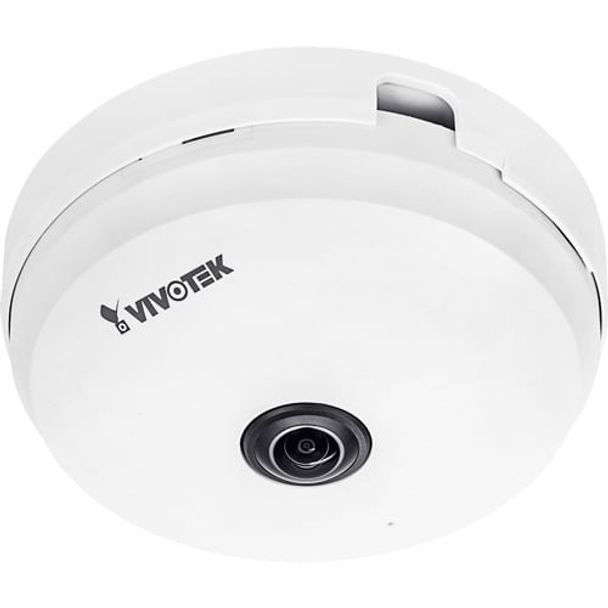

Vivotek C-SERIES FE9180-H Indoor 5M 15fps Network Camera
Model
FE9180-H
| Location | Availability |
|---|---|
Online (Delivery) | In Stock |
Notting Hill (Pickup) | In Stock |
Preston (Pickup) | In Stock |
West Melbourne (Pickup) | In Stock |
$279.00
Indoor, 5M, 15fps, H.265/H.264/MJPEG, f1.16mm fisheye lens, daytime only, WDR Pro, PoE, Built-in Mic, MicroSD/SDHC/SDXC
Key Features
- 15 fps @ 1920x1920
- 1.16 mm Fisheye Lens for 180° Panoramic View and 360° Surround View
- WDR Pro for Unparalleled Visibility in High Contrast Environments
- Smart Stream III to Optimize Bandwidth Efficiency
- Built-in Microphone
- Built-in 802.3af Compliant PoE
- Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
- ePTZ for Data Efficiency
- Compact Design
- VIVOCloud App & Portal for 24/7 Surveillance (manually upload VIVOCloud VADP package)
Overview
VIVOTEK’s updated FE9180-H is a low profile fisheye network camera, featuring a detailed 5-Megapixel resolution sensor with superb image quality. At only 94 mm wide, the FE9180-H is truly an all-in-one surveillance solution that meets a wide variety of needs for indoor surveillance. Now equipped with WDR Pro, the FE9180-H is able to provide consistent crystal clear video quality even in high contrast lighting environments. Also with the addition of a built-in microphone, the FE9180-H is more versatile than ever.
Equipped with a fisheye lens for 180° panoramic view (wall mount) or 360° surround view without blind spots (ceiling mount), the sleek and discreet FE9180-H is able to provide full video coverage for sensitive areas like retail, hotels, banking, and education. The FE9180-H offers various display layouts, including original surround view, panoramic view, and regional view. Additionally, in both the panoramic and regional viewing modes users can utilize the ultra-smooth ePTZ function to effortlessly zoom in and focus on a region of interest (ROI).
Equipped with a fisheye lens for 180° panoramic view (wall mount) or 360° surround view without blind spots (ceiling mount), the sleek and discreet FE9180-H is able to provide full video coverage for sensitive areas like retail, hotels, banking, and education. The FE9180-H offers various display layouts, including original surround view, panoramic view, and regional view. Additionally, in both the panoramic and regional viewing modes users can utilize the ultra-smooth ePTZ function to effortlessly zoom in and focus on a region of interest (ROI).
Technical Specifications
System Information
- Model
- FE9180-H
- CPU
- Multimedia SoC (System-on-Chip)
- Flash
- 128MB
- RAM
- 256MB
Camera Features
- Image Sensor
- 1/2.7" Progressive CMOS
- Max. Resolution
- 1920x1920
- Lens Type
- Fixed-focal
- Focal Length
- f = 1.16 mm
- Aperture
- F2.25
- Auto-iris
- Fixed-iris
- Field of View
- 180° (Horizontal)
180° (Vertical)
180° (Diagonal)
- Shutter Time
- 1/5 sec. to 1/32,000 sec.
- WDR Technology
- WDR Pro
- Minimum Illumination
- 0.25 Lux @ F2.25 (Color), 50IRE
0.13 Lux @ F2.25 (Color), 30IRE
- Pan/Tilt/Zoom Functionalities
- ePTZ: 12x digital zoom (12x on IE plug-in)
- On-board Storage
- Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording
Video
- Video Compression
- H.265, H.264, MJPEG
- Maximum Frame Rate
- 15 fps @ 1920x1920
- Maximum Streams
- 4 simultaneous streams
- S/N Ratio
- 63.9 dB
- Dynamic Range
- 87 dB
- Video Streaming
- Adjustable resolution, quality and bit rate control, Smart Stream III
- Image Settings
- Timestamp, text overlay, flip & mirror, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3D noise reduction, video rotation, defog, pixel calculator
Audio
- Audio Capability
- One-way Audio
- Audio Compression
- G.711, G.726
- Audio Interface
- Built-in microphone
- Effective Range
- 5 meters
Network
- Users
- Live viewing for up to 10 clients
- Protocols
- 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
- Interface
- 10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
- ONVIF
- Supported, specification available at www.onvif.org
Intelligent Video
- Video Motion Detection
- Five-window video motion detection
Alarm and Event
- Alarm Triggers
- Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy
- Alarm Events
- Event notification via email, HTTP, FTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, NAS server, SD card
General
- Connectors
- RJ-45 cable connector for 10/100Mpbs Network/PoE connection
- LED Indicator
- System power and status indicator
- Power Input
- IEEE 802.3af PoE Class 1
- Power Consumption
- Max. 3.6 W
- Dimensions
- 94 x 39 mm
- Weight
- 140 g (with bracket)
- Safety Certifications
- CE, LVD, FCC Class B, VCCI, C-Tick, UL
- Operating Temperature
- Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F)
Working Temperature: -10°C ~ 50°C (14°F ~ 122°F)
- Humidity
- 90%
- Warranty
- 24 months
System Requirements
- Operating System
- Microsoft Windows 8/7
Mac 10.12 (Chrome only)
- Web Browser
- Chrome 58.0 or above
Internet Explorer 10/11
- Other Players
- VLC: 1.1.11 or above
QuickTime: 7 or above
Included Accessories
- Others
- Quick installation guide, warranty card, alignment sticker, screw pack, mounting bracket
| GTIN | 4712123678603 |
|---|
