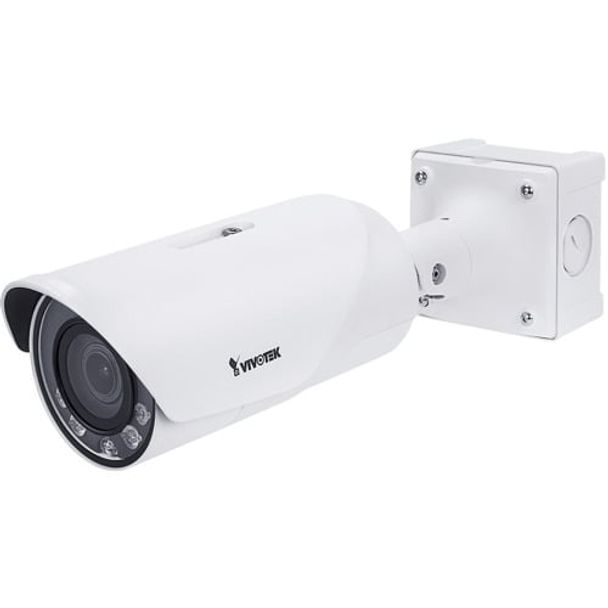

Vivotek V-SERIES IB9391-EHT Outdoor Bullet 8M 30fps H.265/H.264/MJPEG Network Camera
Model
IB9391-EHT
| Location | Availability |
|---|---|
Online (Delivery) | In Stock |
Notting Hill (Pickup) | In Stock |
Preston (Pickup) | In Stock |
West Melbourne (Pickup) | In Stock |
Special Price $1,159.00 Regular Price $1,450.80
Outdoor Bullet, 8M 30fps, H.265/H.264/MJPEG, f3.9-10mm remote focus lens, D /N, IR 50m, SNV, WDR PRO, 3DNR, PoE/DC12V/AC24V, I/O
Key Features
- 30 fps @ 3840x2160 (WDR Pro on), 120 fps @ 1920x1080 (WDR Pro off)
- Smart Stream III to Optimize Bandwidth Efficiency
- Built-in IR Illuminators, Effective up to 50 Meters
- Smart IR II Technology to Avoid Overexposure
- WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
- SNV (Supreme Night Visibility) for Low Light Conditions
- Smart Motion Detection to Reduce False Alarms
- Weather-proof IP66/IP67, Vandal-proof IK10 and NEMA 4X-rated Housing
- -50°C ~ 60°C Wide Temperature Range for Extreme Weather Conditions (IR Off)
- Trend Micro IoT Security
Overview
The IB9391-EHT is the new flagship outdoor bullet network camera from VIVOTEK, equipped with a 4K ultra HD sensor capable of 3840x2160 resolution at 30 fps. With the latest in VIVOTEK WDR Pro technology, the IB9391-HTV is capable of capturing the highest quality images in high contrast environments.
The IB9391-EHT also supports standard 1920x1080 HD resolution at 120 frames per second, capable of catching very fast moving objects. Additionally, the IB9391-EHT employs VIVOTEK's Smart Stream III technology and H.265 compression codec, reducing bandwidth more than 90%* while still maintaining excellent image quality. Protecting all these features is the IB9391-EHT's IP67, IK10 and NEMA 4X certified housing, capable of operating in temperatures from -50°C to 60°C.
* Depending on scene.
The IB9391-EHT also supports standard 1920x1080 HD resolution at 120 frames per second, capable of catching very fast moving objects. Additionally, the IB9391-EHT employs VIVOTEK's Smart Stream III technology and H.265 compression codec, reducing bandwidth more than 90%* while still maintaining excellent image quality. Protecting all these features is the IB9391-EHT's IP67, IK10 and NEMA 4X certified housing, capable of operating in temperatures from -50°C to 60°C.
* Depending on scene.
Technical Specifications
System Information
- Model
- IB9391-EHT
- CPU
- Multimedia SoC (System-on-Chip)
- Flash
- 128MB
- RAM
- 1GB
Camera Features
- Image Sensor
- 1/2" Progressive CMOS
- Max. Resolution
- 3840x2160 (4K/8MP)
- Lens Type
- Motorized, Vari-focal, Remote Focus
- Focal Length
- f = 3.9 ~ 10 mm
- Aperture
- F1.5 ~ F2.7
- Auto-iris
- P-iris
- Field of View
- 45° ~ 95° (Horizontal)
25° ~ 52° (Vertical)
52° ~ 111° (Diagonal)
- Shutter Time
- 1/5 sec. to 1/32,000 sec.
- WDR Technology
- WDR Pro
- Day/Night
- Yes
- Removable IR-cut Filter
- Yes
- Minimum Illumination
- 0.02 Lux @ F1.5 (Color)
0.01 Lux @ F1.5 (B/W)
0 Lux with IR illumination on
- Pan/Tilt/Zoom Functionalities
- ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- IR Illuminators
- Built-in IR Illuminators up to 50 meters with Smart IR II
- On-board Storage
- Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording
Video
- Video Compression
- H.265, H.264, MJPEG
- Maximum Frame Rate
- 30 fps @ 3840x2160 (WDR Pro on)
120 fps @ 1920x1080 (WDR Pro off)
- Maximum Streams
- 3 simultaneous streams
- S/N Ratio
- 60.5 dB
- Dynamic Range
- 120 dB
- Video Streaming
- Adjustable resolution, quality and bit rate control, Smart Stream III
- Image Settings
- Timestamp, text overlay, flip & mirror, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (Up to 24), scheduled profile settings, defog, 3D noise reduction, video rotation, AE speed, DIS, HLC
Audio
- Audio Capability
- Two-way Audio (full duplex)
- Audio Compression
- G.711, G.726
- Audio Interface
- External microphone input
External line output
Network
- Users
- Live viewing for up to 10 clients
- Protocols
- 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
- Interface
- 10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
- ONVIF
- Supported, specification available at www.onvif.org
Intelligent Video
- Smart Motion Detection
- Five-window video motion detection, human detection, time filter
Alarm and Event
- Alarm Triggers
- Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, advanced motion detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
- Alarm Events
- Event notification via digital output, email, HTTP, FTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, NAS server, SD card
General
- Connectors
- RJ-45 cable connector for 10/100Mpbs Network/PoE connection
Audio input
Audio output
DC 12V power input
AC 24V power input
Digital input*1
Digital output*1
- LED Indicator
- System power and status indicator
- Power Input
- IEEE 802.3at PoE Class 4
AC 24V/DC 12V
Power redundancy
- Power Consumption
- Max. 25 W
- Dimensions
- 121 x 121 x 394 mm (w/ junction box)
118 x 118 x 333 mm (w/o junction box)
- Weight
- 2,235 g (w/ junction box)
1,755 g (w/o junction box)
- Casing
- IP66, IP67, IK10, NEMA 4X
- Safety Certifications
- CE, FCC Class A, VCCI, C-tick, UL
- Operating Temperature
- Starting Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
Working Temperature (IR off): -50°C ~ 60°C (-58°F ~ 140°F)
Working Temperature (IR on): -50°C ~ 50°C (-58°F ~ 122°F)
- Humidity
- 90%
- Warranty
- 36 months
System Requirements
- Operating System
- Microsoft Windows 8/7
Mac 10.12 (Chrome only)
- Web Browser
- Chrome 58.0 or above
Internet Explorer 10/11
- Other Players
- VLC: 1.1.11 or above
QuickTime: 7 or above
Included Accessories
- Others
- Junction box(AM-719)*, sunshield, waterproof connectors, quick installation guide, warranty card, alignment sticker, desiccant bags.
* For USA and Canada markets, the junction box (AM-719) is not included.
| GTIN | 4712123678757 |
|---|
