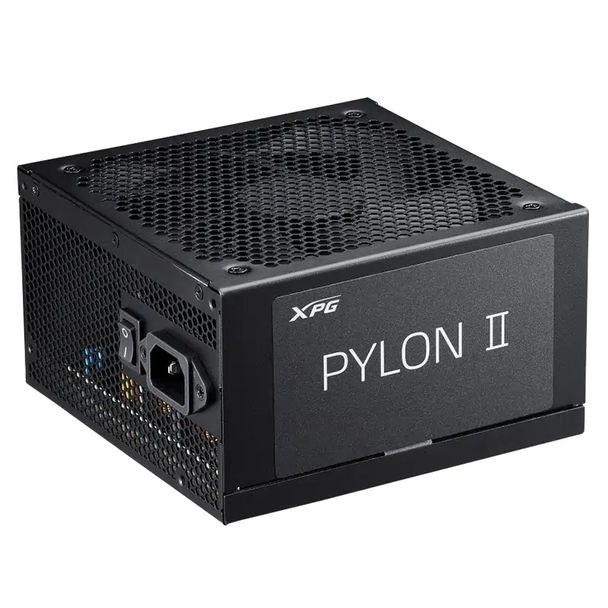

XPG PYLONII650B-BKCAU PYLON II 650W 80+ Broze Power Supply
Model
PYLONII650B-BKCAU
| Location | Availability |
|---|---|
Online (Delivery) | In Stock |
Notting Hill (Pickup) | In Stock |
Preston (Pickup) | In Stock |
West Melbourne (Pickup) | In Stock |
$64.00
SPECIFICATIONS
|
Dimensions (L x W x H) |
150 x 150 x 86 mm |
|
80 Plus Rating |
BRONZE |
|
ATX Version |
Intel ATX v3.1 |
|
Protections |
OVP / OPP / SCP / OCP / UVP / OTP / NLO / SIP |
|
PFC |
0.99 |
|
Input Voltage |
100-240V |
|
Input Current |
10A |
|
Input Frequency |
50-60Hz |
|
DC Output Voltage |
+5V | +3.3V | +12V | -12V | +5Vsb |
|
Total Output |
+5V/+3.3V: 20A, +12V: 54A, -12V: 0.3A, +5Vsb: 3A |
|
Power Excursion |
1527W (up to 235% of PSU’s rated power for 100µs) |
|
Operating Temperature |
50°C |
|
Fan Size |
135mm |
|
Fan Bearing |
FDB (Fluid Dynamic Bearing) |
|
Fan Speed |
2300±10 RPM |
|
MTBF |
100,000 hours at 25℃ |
|
ATX 24 Pin Connector |
1 |
|
EPS 8 Pin Connector |
2 |
|
Molex 4 Pin Connector |
2 |
|
12V-2x6 / 12VHPWR Connectors (450W) |
1 |
|
SATA Connector |
6 |
|
Weight |
1.8 kg |
